TEXFUSE Calender

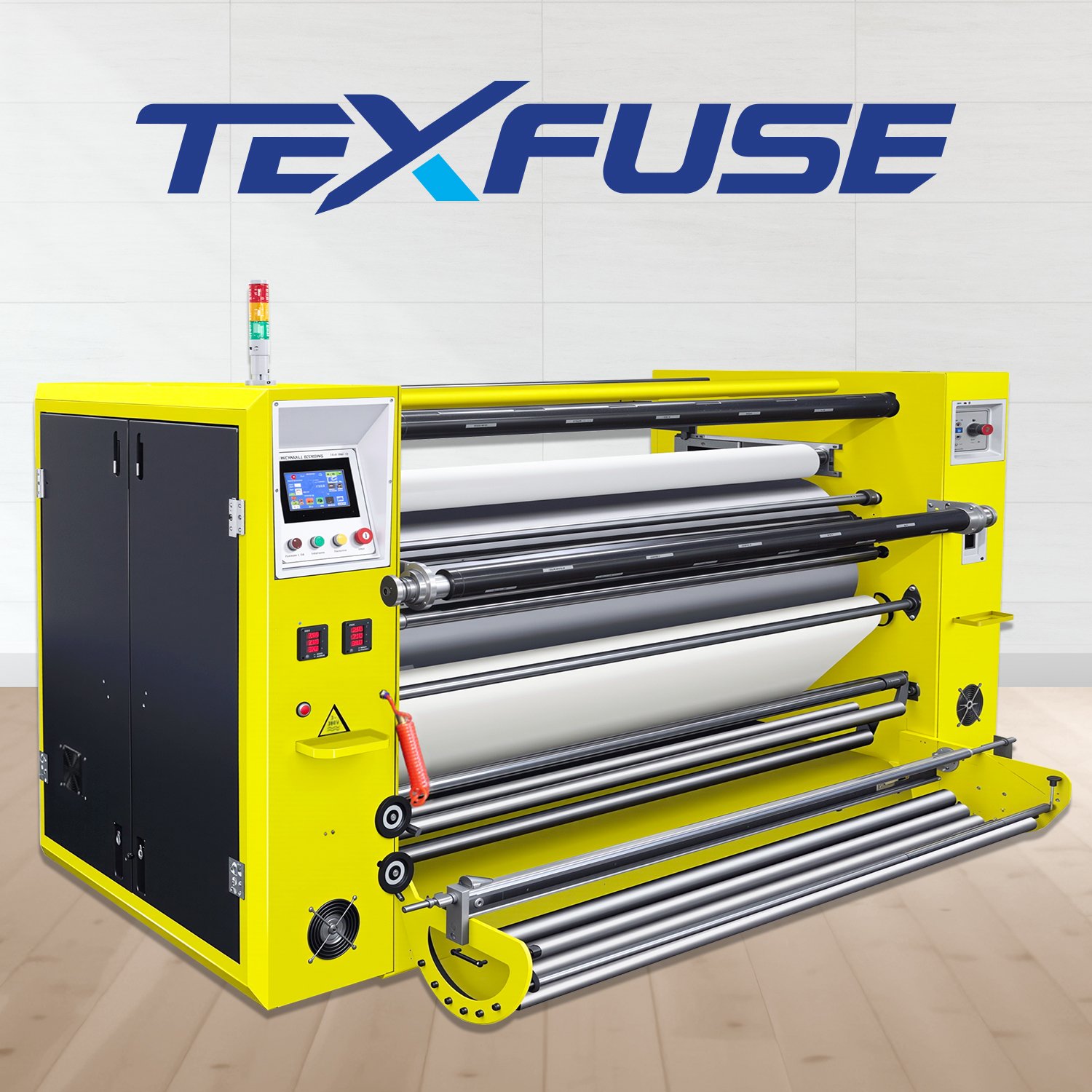

TEXFUSE 26D Calander
310m/h ø420 384m/h ø600 TEXFUSE 26D provides high quality and stable results in transfer printing processes thanks to its oil-heated drum system, which ensures homogeneous heat distribution. Its extra-wide printing area enables efficient production on wide-width fabrics, while the three feeding and three winding systems allow controlled simultaneous feeding of different materials.
Product Features
Control Panel
Blanket Separation
Automatic Blanket Alignment
Pneumatic Pressure System TEXFUSE 26D Oil-Heated Roll-to-Roll Calendar Press Machine
- 1. Automatic shutdown system activates when the temperature drops to 90°C (Adjustable).
- 2. Patented mechanical blanket automatic alignment system.
- 3. A safety valve has been added to the oil drum cap to prevent explosion.
- 4. Double-layer hard chrome drum structure.
- 5. Equipped with an air shaft system for waste paper collection and smoother operation.
- 6. High-quality Nomex blanket is used.
- 7. In case of blanket burning, the felt can be manually completely separated from the drum.
- 8. Silicone-controlled rectifier frequency-converted speed control system is used for energy saving and safety.
- 9. Smart touchscreen control system (automatic startup and user-friendly password settings).
- 10. Automatic blanket separation function (420 / 600 / 800).
- 11. Optional fume exhaust system, automatic lubrication system, and independent electrical cabinet.
Product Applications
| TEXFUSE 26D Technical Specifications | ||||
| Model | 26D | |||
| Drum Diameter | 420 mm (16.54") | 600 mm (23.6") | ||
| Power | 24 KW | 46 KW | 43 KW | 83 KW |
| Drum Width | 1.7 M (66.93") | 3.2 M (125.98") | 1.7 M (66.93") | 3.2 M (125.98") |
| Transfer Width | 1.6 M (62.99") | 3.1 M (112.05") | 1.6 M (62.99") | 3.1 M (112.05") |
| Weight (Approx.) | 1300 KG | 2600 KG | 1700 KG | 3200 KG |
| Package Dimensions | 274 × 175 × 155 cm | 420 × 180 × 180 cm | 274 × 184 × 195 cm | 429 × 184 × 195 cm |
| Number of Heaters | 15 pcs | 27 pcs | ||
| Heating System | 100% Oil Heating + Resistance | |||
| Voltage | 3 Phase, 220V / 380V | |||
| Application | Roll to Roll | |||
| Cylinder System | 3 Feeding and 3 Collecting Cylinders | |||
| Transfer Speed | 2.5 – 5 m/min (98.42 – 196.85"/min) | 2.5 – 6.4 m/min (98.42 – 251.97"/min) | ||
