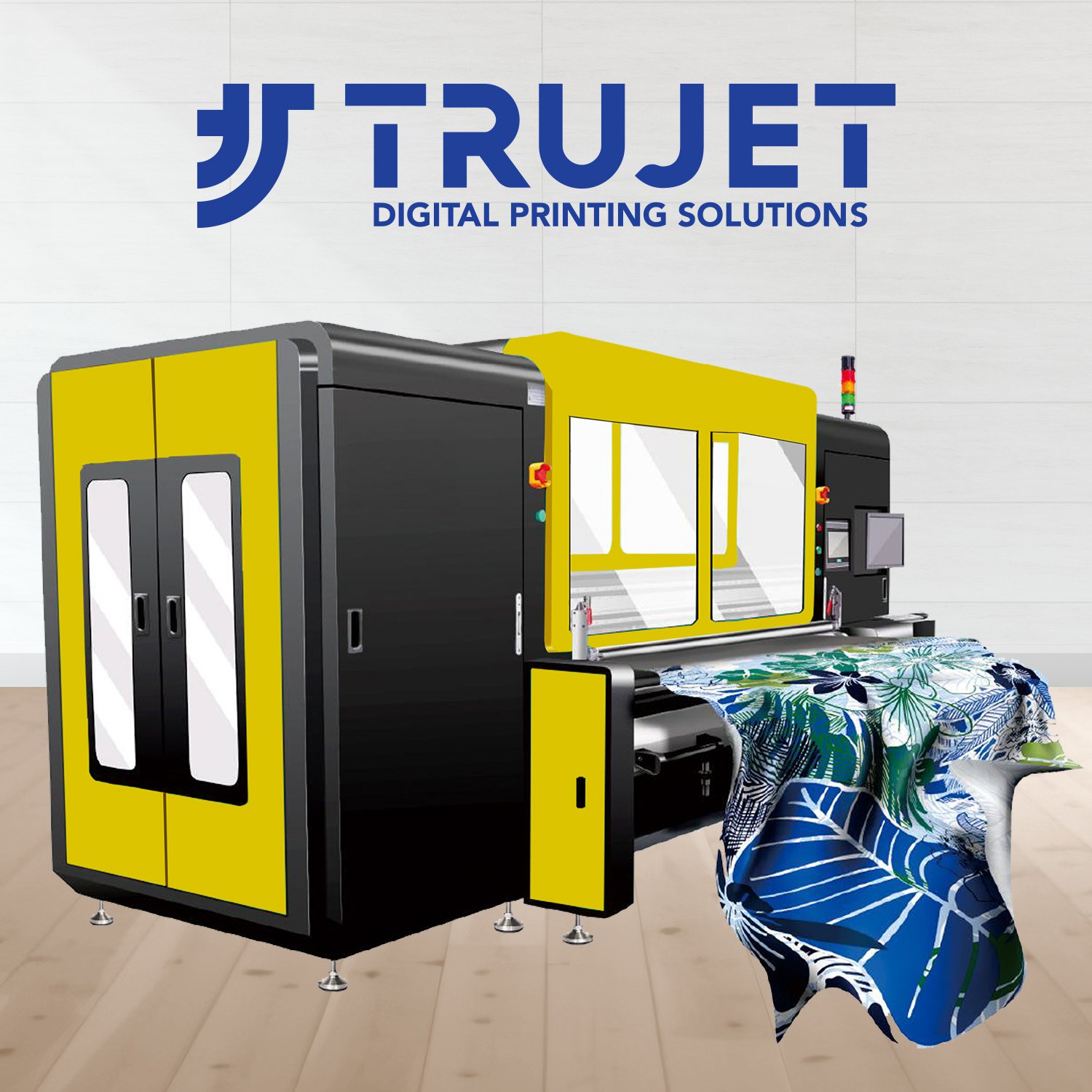

Trujet B24
Belt

Trujet B24

Print Speed 310m²/h Print Speed
Print Width 320cm Print Width

Trujet B24 Blanket Printing Machine is equipped with a high-speed industrial Ricoh G6 print head and effectively meets the increasing demands of industrialized production. Magnetic suspension linear motor technology is used to achieve higher print precision.

Equipped with a high-speed industrial Ricoh G6 print head to effectively meet the increasing demands of industrialized production.


Thanks to the negative pressure ink control system and degassing system, the ink jetting process becomes much more stable and smooth. These systems enhance print quality while minimizing fluctuations that may occur during production.


An automatic blanket washing system supports continuous production and increases efficiency. In addition, the active winding/feeding structure ensures the fabric remains stable and flexible without stretching, preventing dimensional deformation in patterns.


TRUJET B24 Blanket Printing Machine
Machine Model TRUJET B24
Print Head Ricoh Gen-6 Print Head
Print Height Adjustable between 2–30 mm
Max. Print Width 1900mm / 2700mm / 3200mm
Max. Fabric Width 1900mm / 2700mm / 3250mm
Production Speed 310m²/h (2pass)
File Type JPEG / TIFF / BMP file formats, RGB / CMYK color mode
Ink Colors Optional ten colors: C, M, Y, K, Lc, Lm, Grey, Red, Orange, Blue
Ink Types Reactive / Disperse / Pigment / Acid / Cationic Ink
RIP Software Neostampa / Wasatch / Texprint
Transfer System Endless conveyor belt, automatic winding and feeding
Print Head Cleaning Automatic print head cleaning, automatic wiper system
Power Power ≤ 18 kW
Power Supply 380–420 VAC, 3 Phase, 4-wire grounding
Compressed Air 0.3 m³/min, 6 Bar air pressure
Working Environment Temperature 18–28°C, Humidity 50–70%
Width 1900mm 2700mm 3200mm
Overall Dimensions (LxWxH) 4200mmx2770mmx2300mm 4925mmx2770mmx2300mm 6330mmx2700mmx2300mm
Weight 3500kg 3900kg 4500kg
L: Length - W: Width - H: Height
