Trujet B8
Belt

Trujet B8

Print Speed 150m²/h Print Speed
Print Width 320cm Print Width

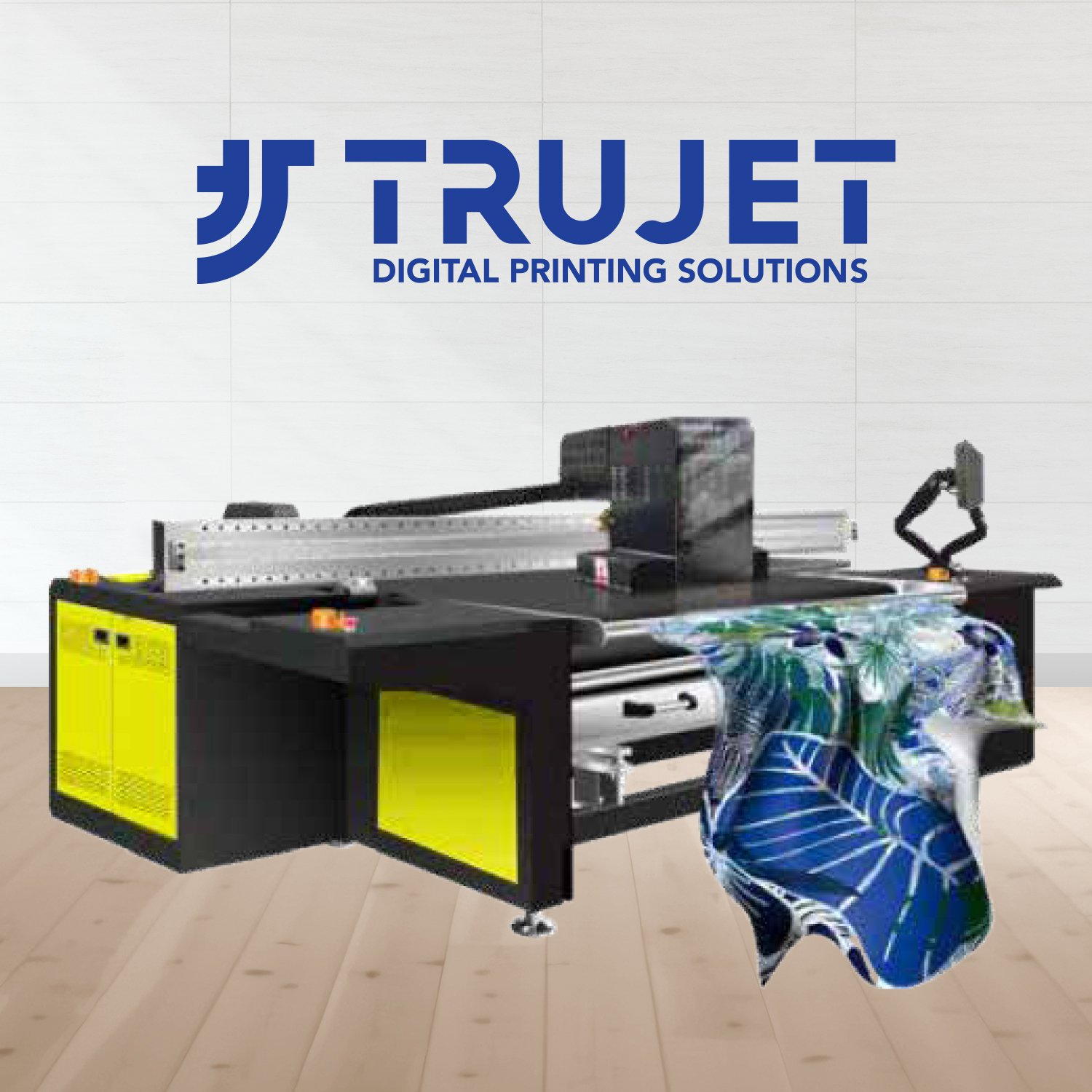

Trujet B8 Blanket Printing Machine is equipped with a high-speed industrial Ricoh G6 print head and effectively responds to the increasing demands of industrialized production. Magnetic levitation linear motor technology is used to achieve higher print precision.

Equipped with a high-speed industrial Ricoh G6 print head, it effectively responds to the increasing demands of industrialized production.


Thanks to the negative pressure ink control system and degassing system, the ink jetting process becomes much more stable and smooth. These systems enhance print quality while minimizing fluctuations that may occur during the production process.


To support uninterrupted production and increase efficiency, an automatic blanket washing system is included. In addition, the active winding/feeding structure keeps the fabric stable and flexible without stretching, preventing dimensional deformation in patterns.


Trujet B8 Blanket Printing Machine
Print Head Ricoh Gen-6 Print Head
Print Height Adjustable between 2–30 mm
Max. Fabric Width 1900mm / 2700mm / 3200mm
Max. Fabric Width 1900mm / 2700mm / 3250mm
Production Speed 150m²/h (2pass)
File Type JPEG / TIFF / BMP file formats, RGB / CMYK color mode
Ink Colors Optional ten colors: C, M, Y, K, Lc, Lm, Grey, Red, Orange, Blue
Ink Types Reactive / Disperse / Pigment / Acid / Cationic Ink
RIP Software Neostampa / Wasatch / Texprint
Transfer System Endless conveyor belt, automatic winding and feeding
Print Head Cleaning Automatic print head cleaning, automatic wiper system
Power Power ≤ 18 kW
Power Supply 380–420 VAC, 3 Phase, 4-wire grounding
Compressed Air 0.3 m³/min, 6 Bar air pressure
Working Environment Temperature 18–28°C, Humidity 50–70%
Width 1900mm 2700mm 3200mm
Overall Dimensions (LxWxH) 3855mmx2485mmx1520mm 4555mmx2485mmx1520mm 5600mmx2485mmx1520mm
Weight 2500kg 2900kg 4000kg
L: Length - W: Width - H: Height
