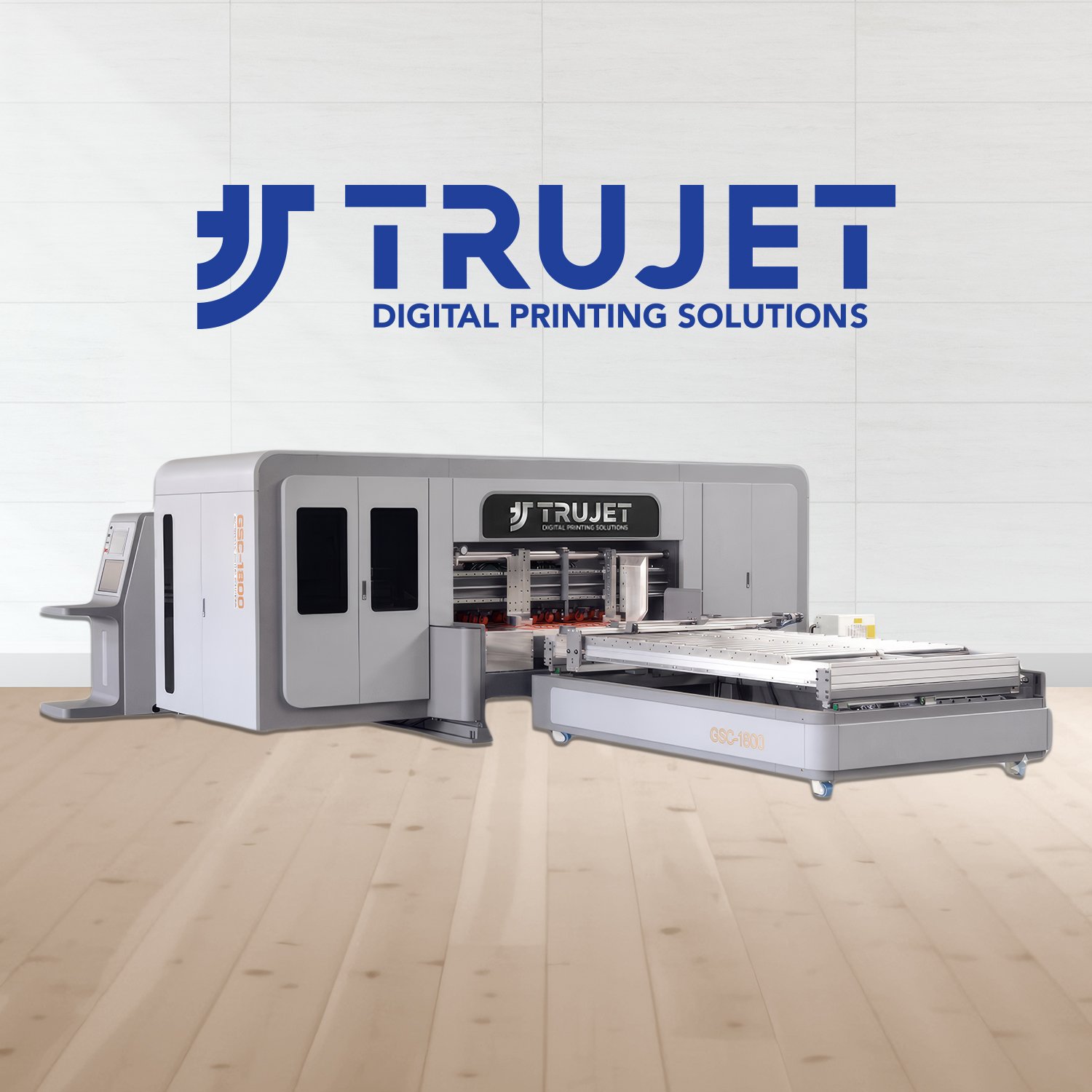

The Trujet C24 Digital Corrugated Cardboard Printing Machine is a professional production solution developed for high-speed and precise corrugated cardboard printing applications.
The Trujet C24 Digital Corrugated Cardboard Printing Machine combines high speed, precise feeding, and industrial durability to deliver maximum performance in corrugated cardboard printing applications.
The machine is equipped with Epson i3200 printheads, and its total of 24 printheads enables high-resolution and uninterrupted production. Its long-lasting printing system, designed with high droplet velocity to reduce dust accumulation, ensures stable print quality throughout production processes.
Thanks to its 8 independently adjustable vacuum channels, materials are transported without touching the printhead surfaces, while the dual-row feeding rollers and steel plate-supported sun gears ensure smooth corrugated cardboard movement. This structure provides reliable, precise, and efficient operation, especially in high-volume production environments.
Trujet C24 Digital Corrugated Cardboard Printing Machine
Feeding Dimensions (L x W)
3500 x 1800 mm (Length can be increased without limitation)
Printhead
Epson i3200
Number of Printheads
24
Printing Speed
600 DPI x 600 DPI – 1.5 m/s 600 DPI x 900 DPI – 1.2 m/s 600 DPI x 1200 DPI – 0.8 m/s
RIP Software
TexPrint / Neostampa / MainTop
Printing Dimensions (L x W)
3500 x 800 mm (Length can be increased without limitation)
Power Specifications
Three-phase 380V / 50Hz Maximum capacity: approx. 33KW Average power consumption: approx. 15KW
Machine Dimensions (L x W x H)
5700 x 5100 x 2100 mm (excluding feeding unit)
Weight
~7200 kg (including stacking unit)
Material Compatibility
Suitable for corrugated cardboard materials with thicknesses between 1.5 ~ 20 mm. Maximum cardboard bending value should not exceed 10 mm/m.
