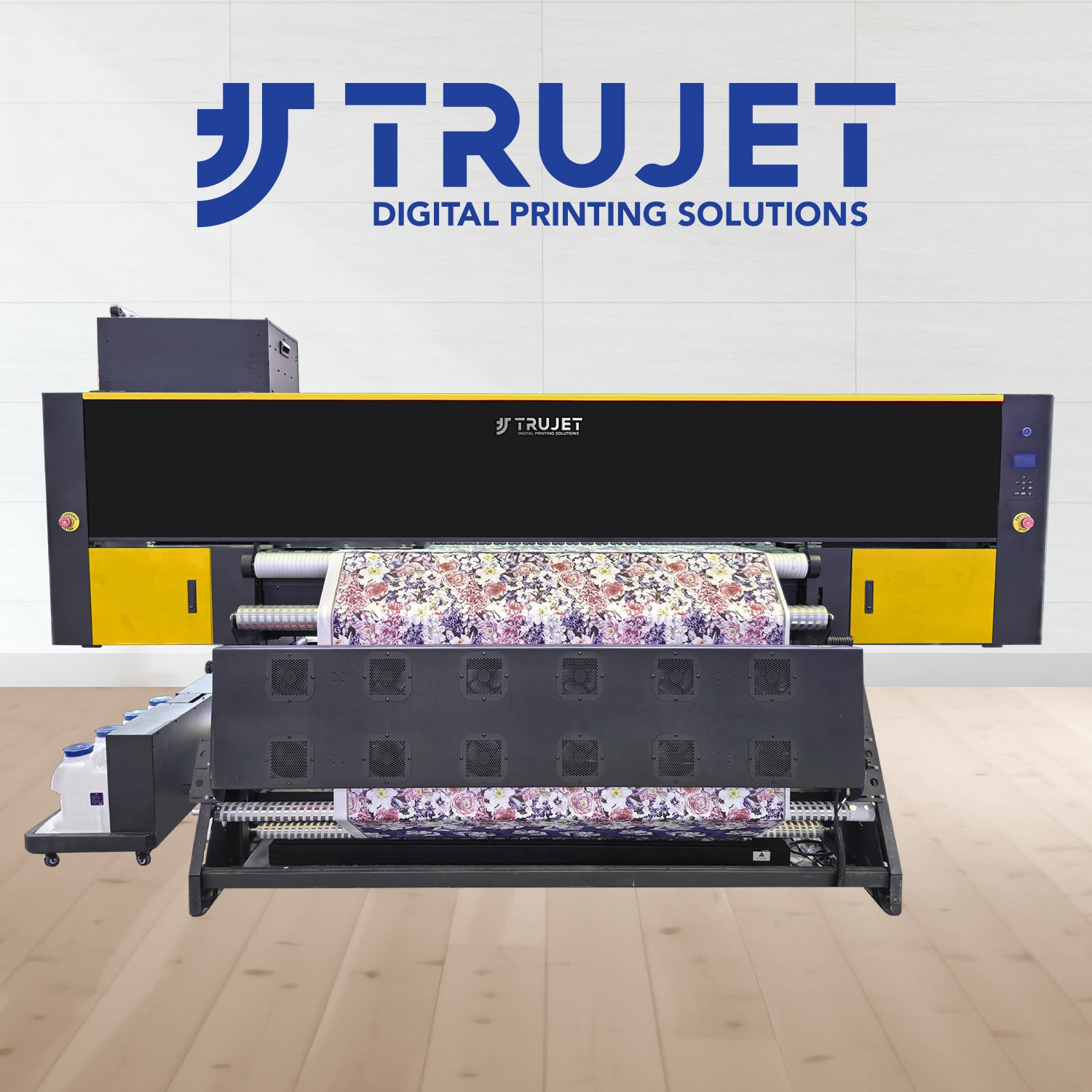

Trujet G24
Sublimation

Trujet G24

Printing Speed 840m²/h Printing Speed
Printing Width 210cm Printing Width

Trujet G24 Digital Textile Printing Machine is a powerful solution developed for businesses requiring high production capacity and industrial performance. With a printing speed of up to 840 m²/h and a maximum printing width of 210 cm, it makes it possible to complete large-volume jobs efficiently and in a short time. Its advanced printing technology offers outstanding printing clarity, ensuring sharp details and consistent color transfer.

Trujet G24 Digital Textile Printing Machine is a powerful solution developed for businesses requiring high production capacity and industrial performance.


The machine is equipped with cost-effective Epson i3200 print heads, offering a combination of high speed and stable quality with a total of 24 heads. Its robust and solid structure ensures long-term and reliable use under intensive production conditions, creating a balanced production solution that delivers both performance and cost advantages for businesses.


Trujet G24 Digital Textile Dye Sublimation Printing Machine
Print Head 24 * EPSON i3200
Maximum Print Width 2100 mm
Motor Linear motor
Ink Type Dye Sublimation Ink
Number of Colors 4 colors, 8 colors, 12 colors (Optional)
Ink Tank System Big Ink Supply system, 25L/tank
Maximum Media Load T5 system: 2000-3000m / Optional T7 Jumbo system: up to 15,000m
Printing Speeds 1 PASS (240×1800 dpi) 840 m²/h
1 PASS (360×1800 dpi) 560 m²/h
2 PASS (480×1800 dpi) 425 m²/h
2 PASS (720×1800 dpi) 280 m²/h
RIP Software TexPrint / Neostampa / MainTop
Operation System Windows - 64 bit system
Power Supply Total power: 24.8kW (T5) / 26kW (T7)
Net Dimensions (LxWxH) 4380x2050x2360 mm (T5) / 4380x2980x2400 mm (T7)
Net/Gross Weight 1430 / 1850 kg (for T5 system)
