T R U J E T
Sublimation

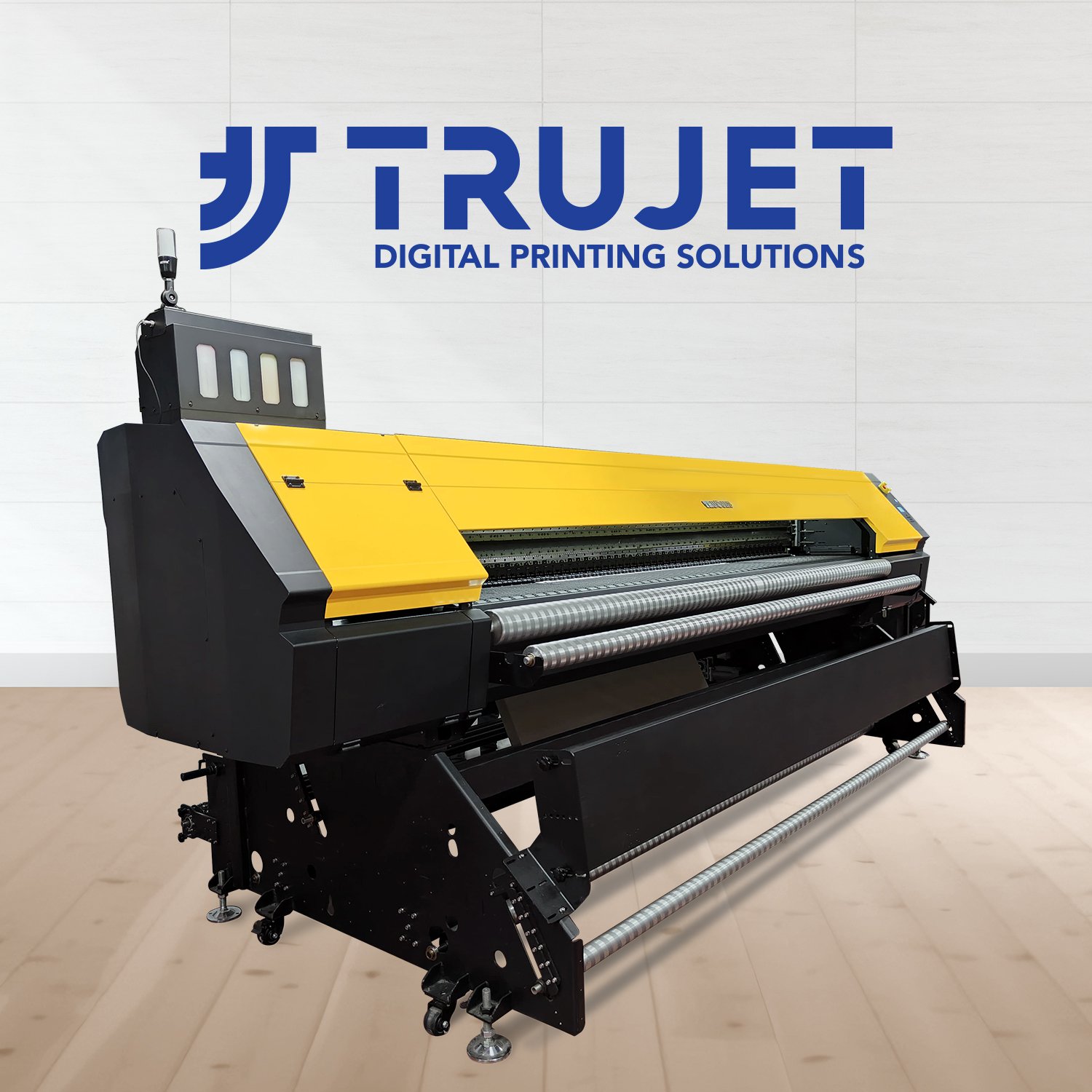

Trujet M16
750m²/h Printing Speed
320cm Print Width The Trujet M16 Digital Textile Sublimation Printing Machine delivers exceptional print clarity with a minimum droplet size of 2 pl and is equipped with 3,200 nozzles per print head, totaling 51,200 nozzles.
CATALOG DOWNLOADThe Trujet M16 Digital Textile Sublimation Printing Machine is a powerful solution developed for industrial-scale manufacturers demanding both extreme speed and superior print quality.
The machine features independently allocated suction pumps for the wiper and flash stations, ensuring highly efficient cleaning and maintenance operations. Designed to prevent media wrinkling, the gapless paper drive system combined with the patented channeled paper suction structure guarantees smooth, stable, and precise media transport throughout long, high-speed production runs.
| Trujet M16 Digital Textile Sublimation Printing Machine | |||
| 190cm | 260cm | 320cm | |
| Print Head | On-demand piezo print head (16 Epson i3200 print heads) | On-demand piezo print head (16 Epson i3200 print heads) | On-demand piezo print head (16 Epson i3200 print heads) |
| Maximum Print Width | 1900 mm | 2750 mm | 3200 mm |
| Ink Type | Sublimation Disperse | Sublimation Disperse | Sublimation Disperse |
| Number of Colors | 4 Colors, 6 – 8 Colors (Optional) | 4 Colors, 6 – 8 Colors (Optional) | 4 Colors, 6 – 8 Colors (Optional) |
| Ink Supply System | 25 L Electronic Ink Supply | 25 L Large Ink Tank System | 25 L Large Ink Tank System |
| Media | Width: 210 ~ 1830 mm Thickness: 1 mm or less Weight: up to 145 kg Length: 3000 – 10000 m Roll Diameter: 50 – 75 mm | Width: 210 ~ 2750 mm Thickness: 1 mm or less Weight: up to 250 kg Length: 400 – 500 m Roll Diameter: 50 – 75 mm | Width: 210 ~ 3150 mm Thickness: 1 mm or less Weight: up to 250 kg Length: 400 – 500 m Roll Diameter: 50 – 75 mm |
| Printing Speeds | 360 x 1200 dpi – 2 pass 700 m²/hour 720 x 1200 dpi – 4 pass 350 m²/hour | 360 x 1200 dpi – 2 pass 740 m²/hour 720 x 1200 dpi – 4 pass 370 m²/hour | 360 x 1200 dpi – 2 pass 750 m²/hour 720 x 1200 dpi – 4 pass 375 m²/hour |
| RIP Software | ErgoRIP (TexPrint) / Neostampa / Maintop | ErgoRIP (TexPrint) / Neostampa / Maintop | ErgoRIP (TexPrint) / Neostampa / Maintop |
| Interface | Gigabit Ethernet | Gigabit Ethernet | Gigabit Ethernet |
| Power Specifications | AC 100 – 120 V ± 10 / AC 220 – 240 V ± 10, 50 / 60 Hz ± 1 Hz | AC 100 – 120 V ± 10 / AC 220 – 240 V ± 10, 50 / 60 Hz ± 1 Hz | AC 100 – 120 V ± 10 / AC 220 – 240 V ± 10, 50 / 60 Hz ± 1 Hz |
| Power Consumption | 16.7 kW | 16.7 kW | 16.7 kW |
| Net Dimensions (W x D x H) | 3490 x 1900 x 2240 mm | 5000 x 1890 x 3455 mm | 5000 x 1700 x 3200 mm |
| Gross Dimensions (W x D x H) | 3490 x 1900 x 2240 mm | 5000 x 1890 x 3455 mm | 5450 x 1890 x 3455 mm |
| Net / Gross Weight | 900 kg / 1100 kg | 900 kg / 1000 kg | 1000 kg / 1100 kg |
