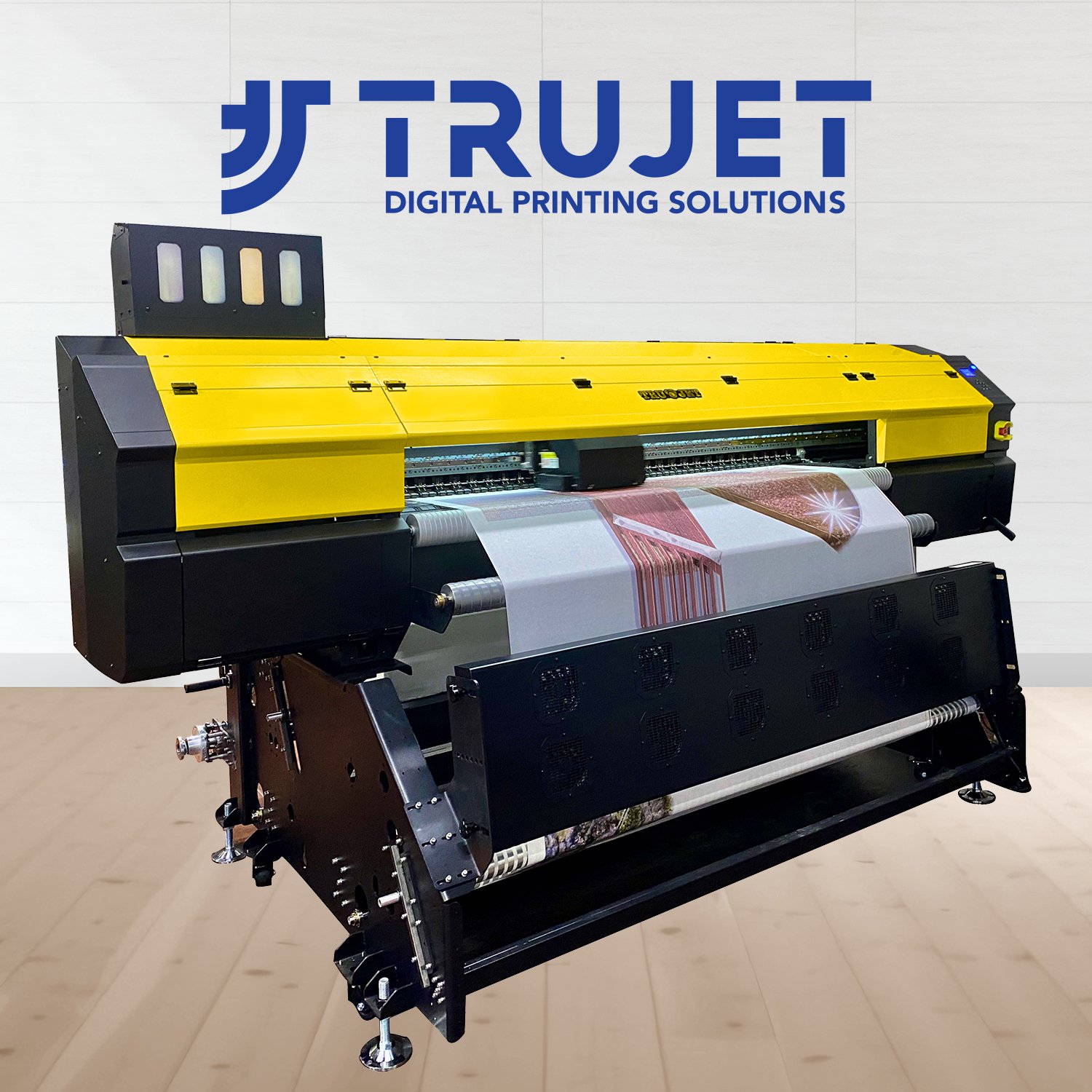

Trujet M4
225m²/h Printing Speed
320cm Print Width The Trujet M4 Digital Textile Sublimation Printing Machine is a powerful solution developed for professional production with high quality expectations. Thanks to its outstanding print clarity, it transfers even the finest details flawlessly. A minimum droplet size of 2 pl ensures smooth color gradients and high resolution, delivering vivid and sharp results in every print.
The Trujet M4 Digital Textile Sublimation Printing Machine is a powerful solution developed for professional production with high quality expectations.
The machine features a total of 12,800 nozzles, with 3,200 nozzles per print head. This configuration enables stable and homogeneous print quality even at high speeds. Independent cleaning stations for each print head simplify maintenance while extending print head lifespan. In addition, the flash station prevents ink cutoff in unused colors, ensuring uninterrupted and reliable production.
The Trujet M4’s two-stage patented ink supply system manages ink flow in a balanced and stable manner. This system minimizes fluctuations during printing and enhances color consistency. The gapless paper drive design, developed to prevent wrinkling, ensures smooth and error-free media feeding, especially in long-run printing, maximizing production efficiency.
| Trujet M4 Digital Textile Sublimation Printing Machine | |||
| 190cm | 260cm | 320cm | |
| Print Head | On-demand piezo print head (4 staggered print heads) | On-demand piezo print head (4 staggered print heads) | On-demand piezo print head (4 staggered print heads) |
| Maximum Print Width | 1900 mm | 2750 mm | 3200 mm |
| Ink Type | Sublimation Disperse | Sublimation Disperse | Sublimation Disperse |
| Number of Colors | 4 Colors, 6 Colors, 8 Colors (Optional) | 4 Colors, 6 Colors, 8 Colors (Optional) | 4 Colors, 6 Colors, 8 Colors (Optional) |
| Ink Supply System | Open ink loading system, special filter | Open ink loading system, special filter | Open ink loading system, special filter |
| Media | Width: 210 mm ~ 1,910 mm Thickness: 1 mm or less Weight: up to 75 kg Length: 500 – 1000 m Roll diameter: 50 mm – 75 mm | Width: 210 mm ~ 2,750 mm Thickness: 1 mm or less Weight: up to 200 kg Length: 400 – 500 m Roll diameter: 50 mm – 75 mm | Width: 210 mm ~ 3,200 mm Thickness: 1 mm or less Weight: up to 200 kg Length: 400 – 500 m Roll diameter: 50 mm – 75 mm |
| Printing Speeds | 360 x 1200 dpi – 2 pass 203 m²/hour 360 x 1800 dpi – 3 pass 152 m²/hour 720 x 1200 dpi – 4 pass 102 m²/hour | 360 x 1200 dpi – 2 pass 216 m²/hour 360 x 1800 dpi – 3 pass 162 m²/hour 720 x 1200 dpi – 4 pass 108 m²/hour | 360 x 1200 dpi – 2 pass 225 m²/hour 360 x 1800 dpi – 3 pass 169 m²/hour 720 x 1200 dpi – 4 pass 113 m²/hour |
| RIP Software | ErgoRIP (TexPrint) / Neostampa / Maintop | ErgoRIP (TexPrint) / Neostampa / Maintop | ErgoRIP (TexPrint) / Neostampa / Maintop |
| Interface | Gigabit Ethernet | Gigabit Ethernet | Gigabit Ethernet |
| Power Specifications | AC 100 ~ 120 V ± 10 / AC 220 ~ 240 V ± 10, 50/60 Hz ± 1Hz | AC 100 ~ 120 V ± 10 / AC 220 ~ 240 V ± 10, 50/60 Hz ± 1Hz | AC 100 ~ 120 V ± 10 / AC 220 ~ 240 V ± 10, 50/60 Hz ± 1Hz |
| Power Consumption | 300 W or less (excluding heaters) | 300 W or less (excluding heaters) | 300 W or less (excluding heaters) |
| Net Dimensions (W x D x H) | 3620 × 1100 × 1440 mm | 4200 × 1100 × 1570 mm | 4920 × 1350 × 1685 mm |
| Gross Dimensions (W x D x H) | 3640 x 1080 x 1120 mm | 4500 x 1100 x 1200 mm | 5120 x 1100 x 1210 mm |
| Net / Gross Weight | 650 kg / 920 kg | 750 kg / 930 kg | 800 kg / 1000 kg |
