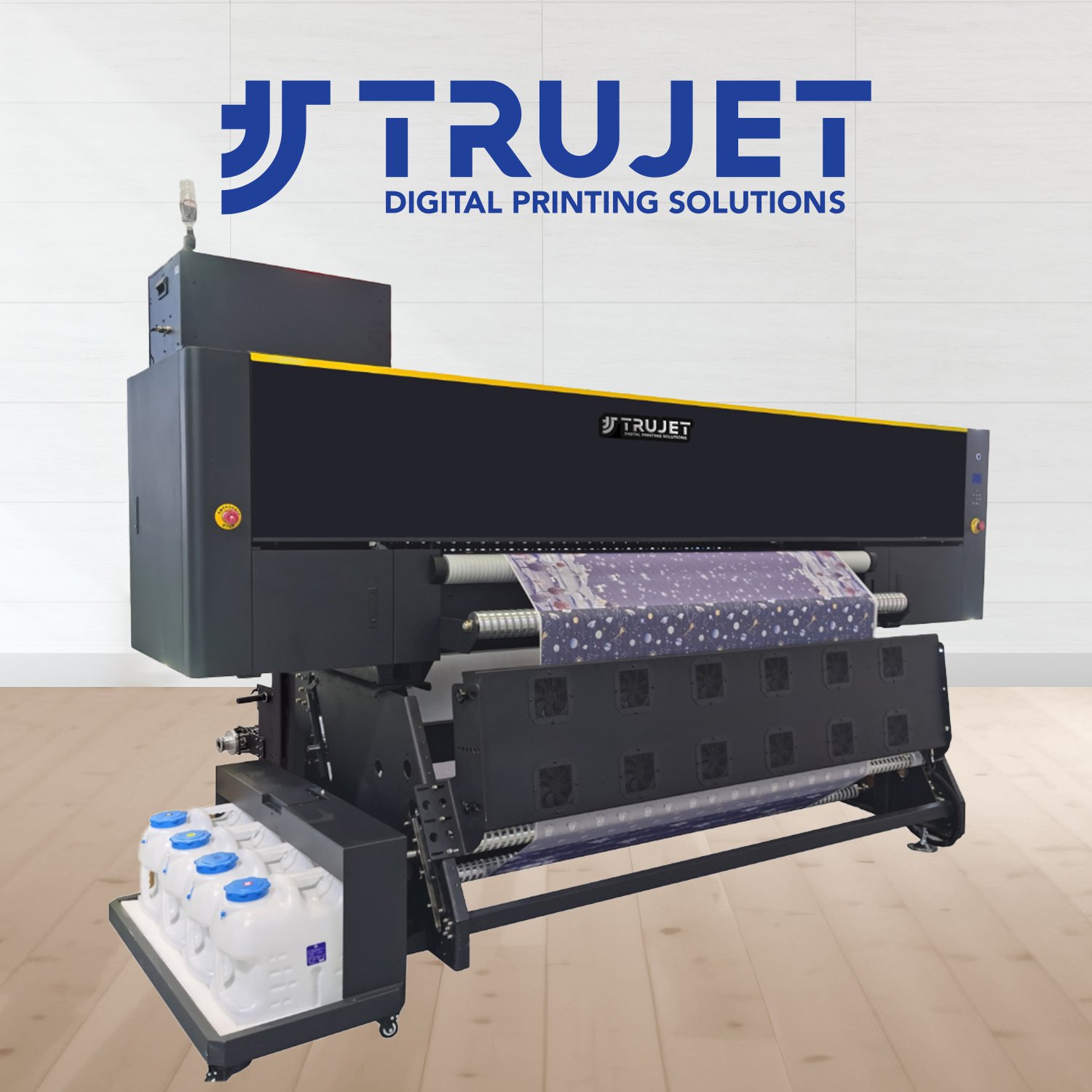

Trujet M8
387m²/h Printing Speed
320cm Print Width The Trujet M8 Digital Textile Sublimation Printing Machine is a powerful solution developed for industrial-scale production facilities that demand both high speed and superior print quality. Thanks to its outstanding print clarity, even the finest details are reproduced with exceptional accuracy. A minimum droplet size of 2 pl ensures smooth color gradations and high resolution, delivering vivid, sharp, and consistent results in every print.
The Trujet M8 Digital Textile Sublimation Printing Machine is a powerful solution developed for industrial-scale production facilities that demand both high speed and superior print quality.
The machine is equipped with a total of 25,600 nozzles, with 3,200 nozzles per print head. This high nozzle count ensures homogeneous and stable print quality even at high production speeds. The flash station prevents ink cutoff in unused colors, minimizing interruptions during production and significantly improving operational continuity and reliability.
The Trujet M8 features a two-stage patented ink supply system that manages ink flow in a balanced and stable manner, maximizing color consistency. Its gapless paper drive design, developed to prevent wrinkling, combined with the patented channeled paper suction system, ensures smooth and accurate paper feeding—especially during long-run printing—delivering efficient, high-quality, and trouble-free production.
| Trujet M8 Digital Textile Sublimation Printing Machine | |||
| 190cm | 260cm | 320cm | |
| Print Head | On-demand piezo print head (8 staggered print heads) | On-demand piezo print head (8 staggered print heads) | On-demand piezo print head (8 staggered print heads) |
| Maximum Print Width | 1900 mm | 2750 mm | 3200 mm |
| Ink Type | Sublimation Disperse | CMYK, Sublimation Disperse | CMYK, Sublimation Disperse |
| Ink Supply Capacity | 25 L / color open ink loading system (with filtration) 11 L / color jumbo ink system (filtered intermediate tank with level and fault sensors – optional) | 5 L / color open ink loading system (with filtration) 11 L / color jumbo ink system (filtered intermediate tank with level and fault sensors – optional) | 5 L / color open ink loading system (with filtration) 11 L / color jumbo ink system (filtered intermediate tank with level and fault sensors – optional) |
| Ink Supply System | 25 L / color open ink loading system (with filtration) 11 L / color jumbo ink system (filtered intermediate tank with level and fault sensors – optional) | - | - |
| Media | Width: 210 mm ~ 1910 mm Thickness: 1 mm or less Weight: up to 75 kg Length: 2000 – 3000 m Roll diameter: 50 mm – 75 mm | Width: 210 mm ~ 2750 mm Thickness: 1 mm or less Weight: up to 200 kg Length: 400 – 500 m Roll diameter: 300 mm | Width: 210 mm ~ 3350 mm Thickness: 1 mm or less Weight: up to 200 kg Length: 400 – 500 m Roll diameter: 300 mm |
| Printing Speeds | 360 x 1200 dpi – 2 pass 360 m²/hour 720 x 1200 dpi – 4 pass 180 m²/hour | 360 x 1200 dpi – 2 pass 374 m²/hour 720 x 1200 dpi – 4 pass 187 m²/hour | 360 x 1200 dpi – 2 pass 387 m²/hour 720 x 1200 dpi – 4 pass 194 m²/hour |
| RIP Software | ErgoRIP (TexPrint) / Neostampa / Maintop | ErgoRIP (TexPrint) / Neostampa / Maintop | ErgoRIP (TexPrint) / Neostampa / Maintop |
| Interface | Gigabit Ethernet | Gigabit Ethernet | Gigabit Ethernet |
| Power Specifications | AC 100 ~ 120 V ± 10 / AC 220 ~ 240 V ± 10, 50/60 Hz ± 1Hz | AC 100 ~ 120 V, 2.8A (600W) / AC 220 ~ 240 V, 1.5A (600W) Heater: 1.5 kW per lamp | AC 100 ~ 120 V, 2.8A (600W) / AC 220 ~ 240 V, 1.5A (600W) Heater: 1.5 kW per lamp |
| Power Consumption | 300 W or less (excluding heaters) | 300 W or less (excluding heaters) | 300 W or less (excluding heaters) |
| Net Dimensions (W x D x H) | 3500 x 1800 x 1900 mm | 4360 x 1660 x 1700 mm | 5000 x 1660 x 1700 mm |
| Gross Dimensions (W x D x H) | 3970 x 1100 x 1200 mm | 4300 x 1600 x 1650 mm | 5120 x 1100 x 1200 mm Accessories: 4150 x 600 x 550 mm |
| Net / Gross Weight | 680 kg / 950 kg | 750 kg / 930 kg | 900 kg / 1000 kg |
