Trujet U18H
UV Printing Machines

Trujet U18H

Printing Speed 75m²/h Printing Speed
Print Width 320cm Print Width

The Trujet U18H Hybrid UV Printing Machine delivers high productivity with a printing speed of up to 75 m²/hour and a maximum print width of 320 cm. Thanks to its high-frequency, water-cooled LED UV lamp, fast and uniform curing is achieved, while the high-precision aluminum platform enhances stability and print quality during operation.

The Trujet U18H Hybrid UV Printing Machine delivers high productivity with a printing speed of up to 75 m²/hour and a maximum print width of 320 cm.


The industrial-grade negative pressure system ensures stable ink flow, supporting continuous and reliable printing performance. The anti-collision system on the carriage unit protects the print heads, while the integrated thermo-hygrometer allows real-time monitoring of ambient temperature and humidity conditions.

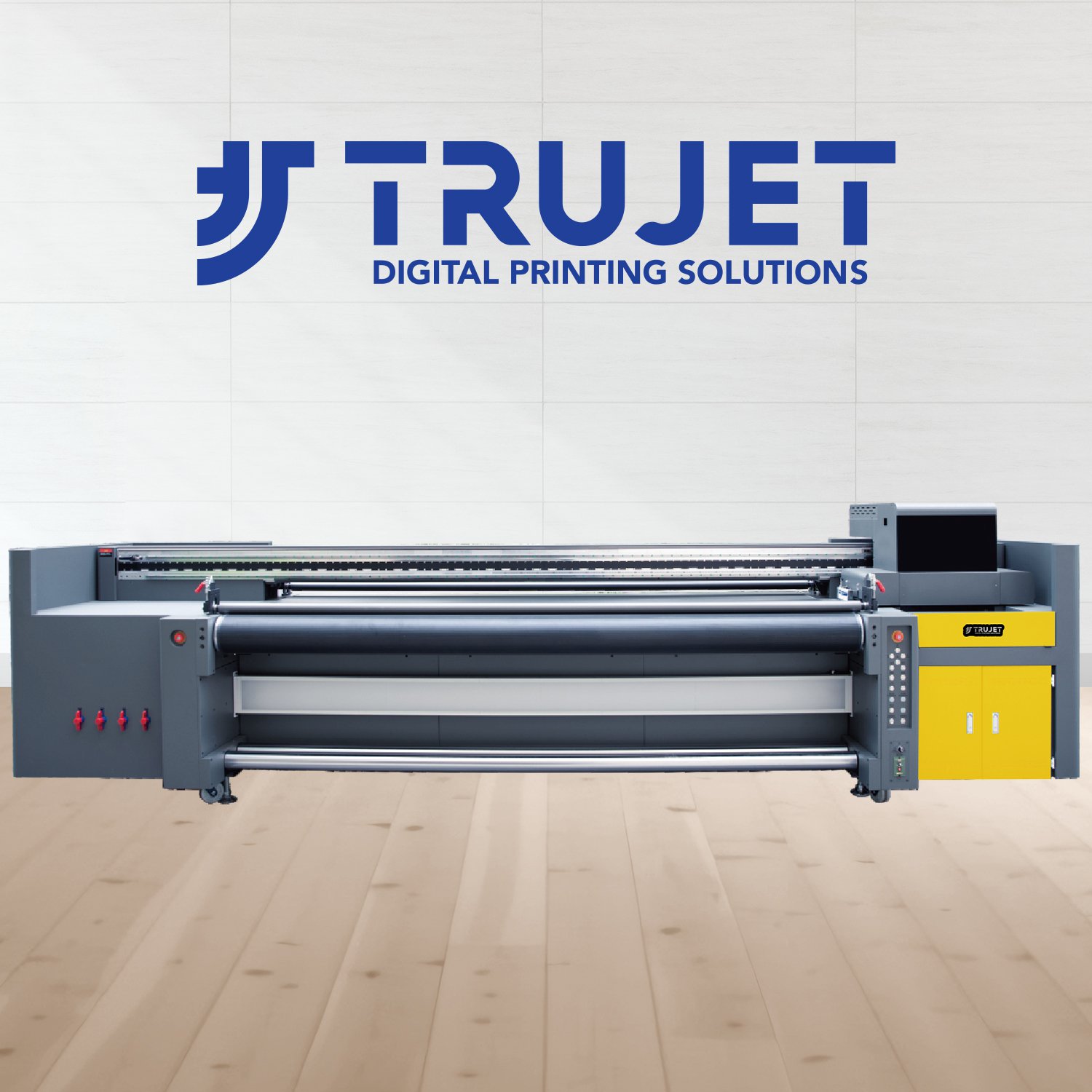

Trujet U18H Hybrid UV Printing Machine
Model U18H
Print Head Konica 1024i (6/13pl) 4–18 pcs
Printing Speed / Mode 6 PASS: 75 m²/hour (18 Heads)
Maximum Print Width 3200 mm
Operating Conditions 20–26 °C / 40%–70% RH
Power Requirement > 20A; 6.0 kW
RIP Software RIIN / Maintop / Photoprint / ONYX (Optional)
Applicable Materials Suitable for all types of indoor and outdoor advertising and decorative materials.
Machine Dimensions 5850 × 1580 × 1700 mm
Packing Dimensions 5950 × 1680 × 1850 mm
Net / Gross Weight 2980 kg / 3100 kg
