Trujet U4
UV Printing Machines

Trujet U4

Print Speed 29 m²/h Print Speed
Print Width 174 cm Print Width

The Trujet U4 Roll to Roll UV Printing Machine offers a powerful solution for high-quality production with a printing speed of up to 29 m²/h and a maximum printing width of 1.74 m.

CATALOG DOWNLOAD

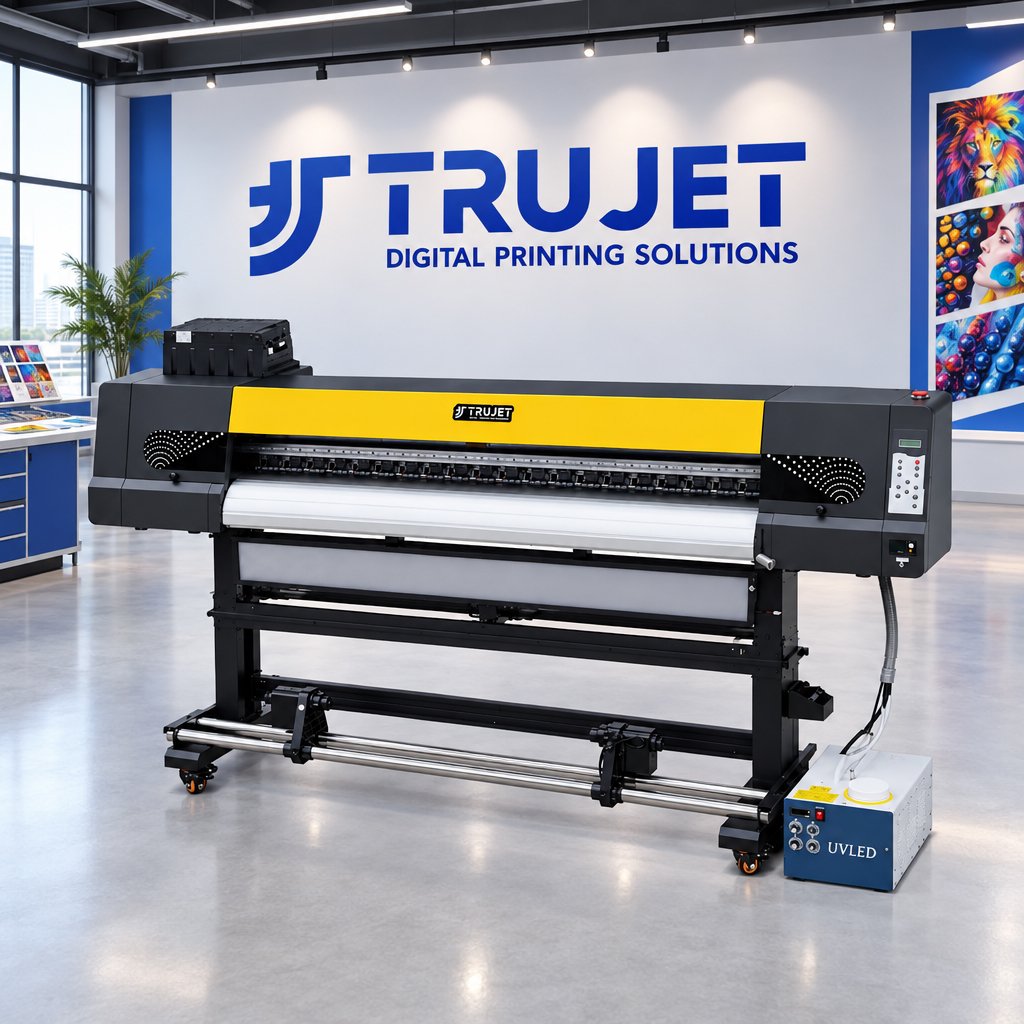

Trujet U4 Roll to Roll UV Printing Machine


The circulating water cooling system delivers fast and uniform drying performance, accelerating the production workflow. Compatible with a wide range of media including indoor and outdoor advertising substrates as well as decoration materials, it guarantees smooth and high-reliability printing performance.


Trujet U4 Roll to Roll UV Printing Machine
Model U4
Printhead I3200-U1 / 4 Pcs
Print Speed / Mode 4 Heads CMYK: 6 Pass: 29 m²/h | 8 Pass: 20 m²/h
4 Heads CMYK+W: 6 Pass: 17 m²/h | 8 Pass: 12 m²/h
Maximum Print Width 1.74 m (1740 mm)
Curing System Circulating water cooling system
Operating Temp / Humidity 20 – 28 °C / 40% – 60% RH
Power 500 W + 1200 W (UV Chiller)
RIP Software Ergosoft / NeoStampa / Photoprint / ONYX (Optional)
Compatible Media Types All kinds of indoor and outdoor advertising materials and decoration materials
Machine Dimensions 2855 x 730 x 1570 mm (L x W x H)
Packing Dimensions Machine: 3380 x 760 x 850 mm
Chiller: 465 x 465 x 456 mm
Net / Gross Weight 307.5 kg / 414 kg
