Trujet U8EH
UV Printing Machines

Trujet U8EH

Print Speed 60 m²/h Print Speed
Print Width 180 cm Print Width

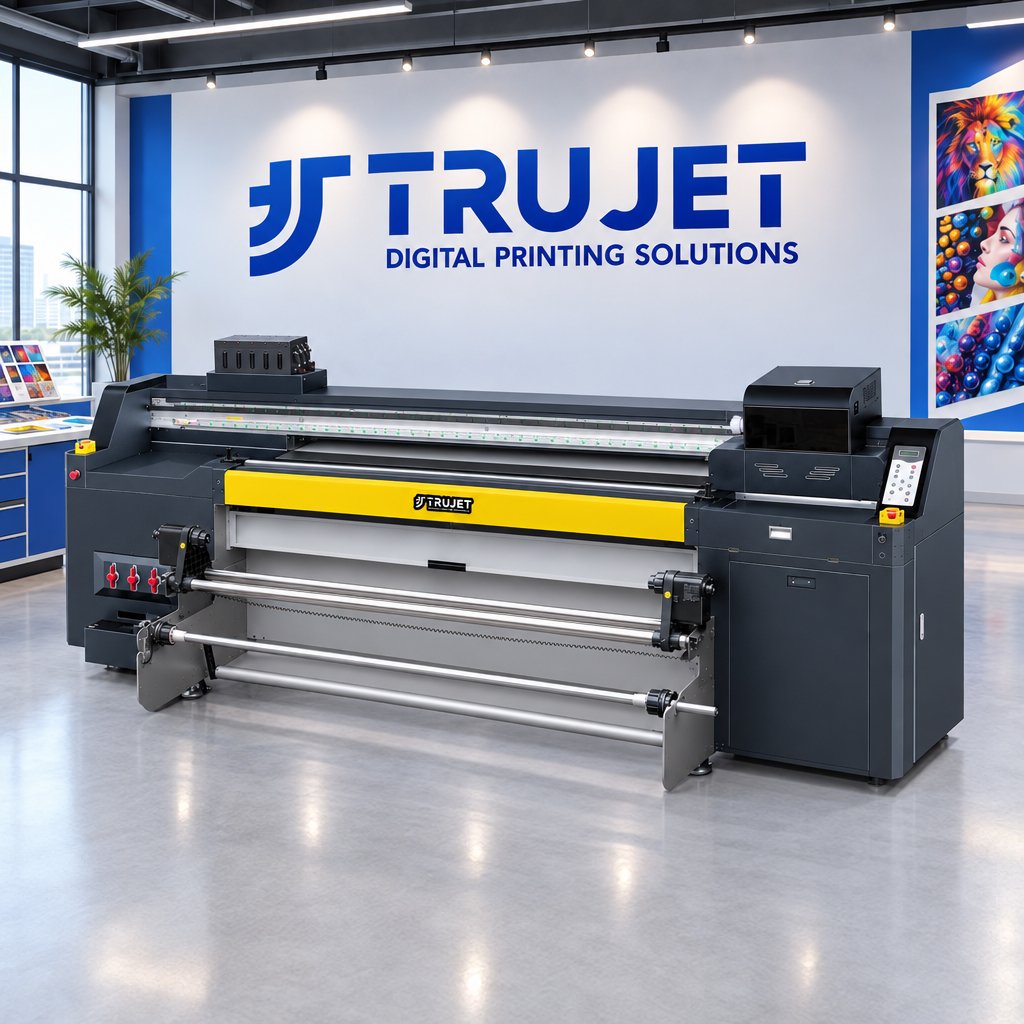

The Trujet U8EH Hybrid UV Printer is an industrial solution offering high efficiency and precision with a maximum print speed of 60 m²/h and a print width of 1.8 m.

DOWNLOAD CATALOGUE

Trujet U8EH Hybrid UV Printer


High-efficiency water-cooled LED UV lamps deliver fast and uniform curing performance during printing. Featuring a chain conveyor belt media feeding system, industrial-grade negative pressure system, and carriage anti-collision system, it ensures continuous, safe, and high-quality printing on both roll and sheet materials.


Trujet U8EH Hybrid UV Printer
Model U8EH-18
Printhead I3200-U1 / 8 Pcs
Print Speed / Mode 6 PASS: 60 m²/h
8 PASS: 48 m²/h
Maximum Print Width 1.8 m (1800 mm)
Curing System High-efficiency water-cooled LED UV lamps
Operating Temp / Humidity 20 – 26 °C / 40% – 60% RH
Power AC 220V / 110V (±5%), 50Hz / 60Hz
RIP Software Ergosoft / NeoStampa / Photoprint / ONYX (Optional)
Media Type Applicable for roll and sheet materials, mainly used in leather, home decoration, and advertising industries.
Dimensions 3705 x 1785 x 1640 mm (L x W x H)
Packing Dimensions 3845 x 1810 x 1610 mm (L x W x H)
Net / Gross Weight 1150 kg / 1235 kg
