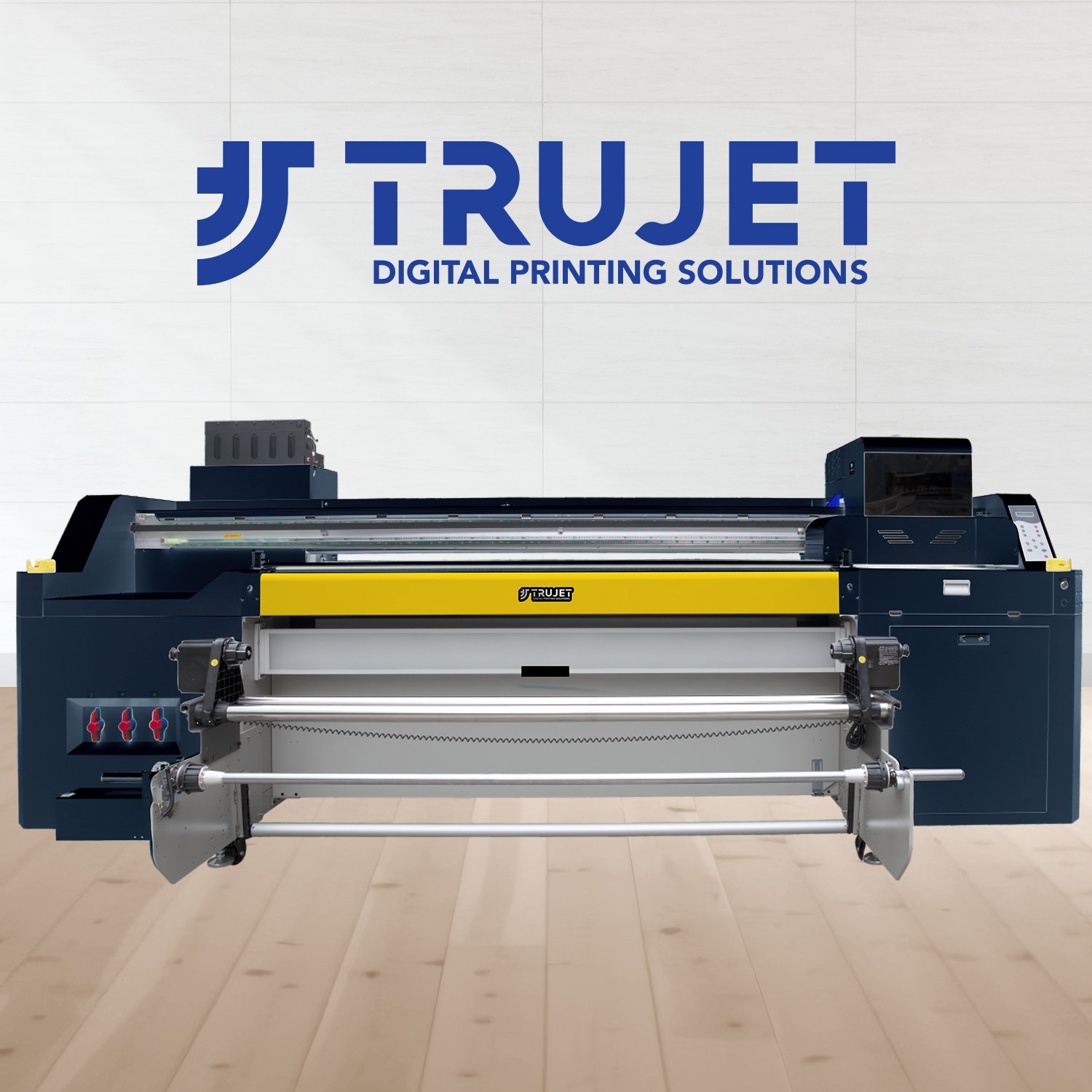

Trujet U8H
UV Printing Machines

Trujet U8H

Printing Speed 60m²/h Printing Speed
Print Width 180cm Print Width

The Trujet U8H Hybrid UV Printing Machine delivers high efficiency with a printing speed of up to 60 m²/hour and a maximum print width of 180 cm. Equipped with a high-frequency, water-cooled LED UV lamp, it ensures fast and uniform curing, while the high-precision aluminum platform enhances stability and print quality throughout the printing process.

The Trujet U8H Hybrid UV Printing Machine delivers high efficiency with a printing speed of up to 60 m²/hour and a maximum print width of 180 cm.


The industrial-grade negative pressure system ensures stable ink flow, supporting continuous and reliable printing performance. The anti-collision system on the carriage unit protects the print heads during operation, while the integrated thermo-hygrometer allows real-time monitoring of ambient temperature and humidity levels.


Trujet U8H Hybrid UV Printing Machine
Model U8H
Print Head I3200-U1 / 8 Units
Printing Speed / Mode 6 PASS: 60 m²/hour
8 PASS: 48 m²/hour
Maximum Print Width 1800 mm
Operating Humidity 40% – 60%
Operating Temperature 20 – 26 °C
Power Supply AC 220V / 110V (±5%), 50Hz / 60Hz
RIP Software Maintop, RIIN, Photoprint, ONYX (Optional)
Applicable Materials Suitable for both roll and rigid materials.
Mainly used in leather, home décor, and advertising industries.
Machine Dimensions 3705 x 1785 x 1640 mm
Packing Dimensions 3845 x 1810 x 1610 mm
Net / Gross Weight 1150 kg / 1235 kg
