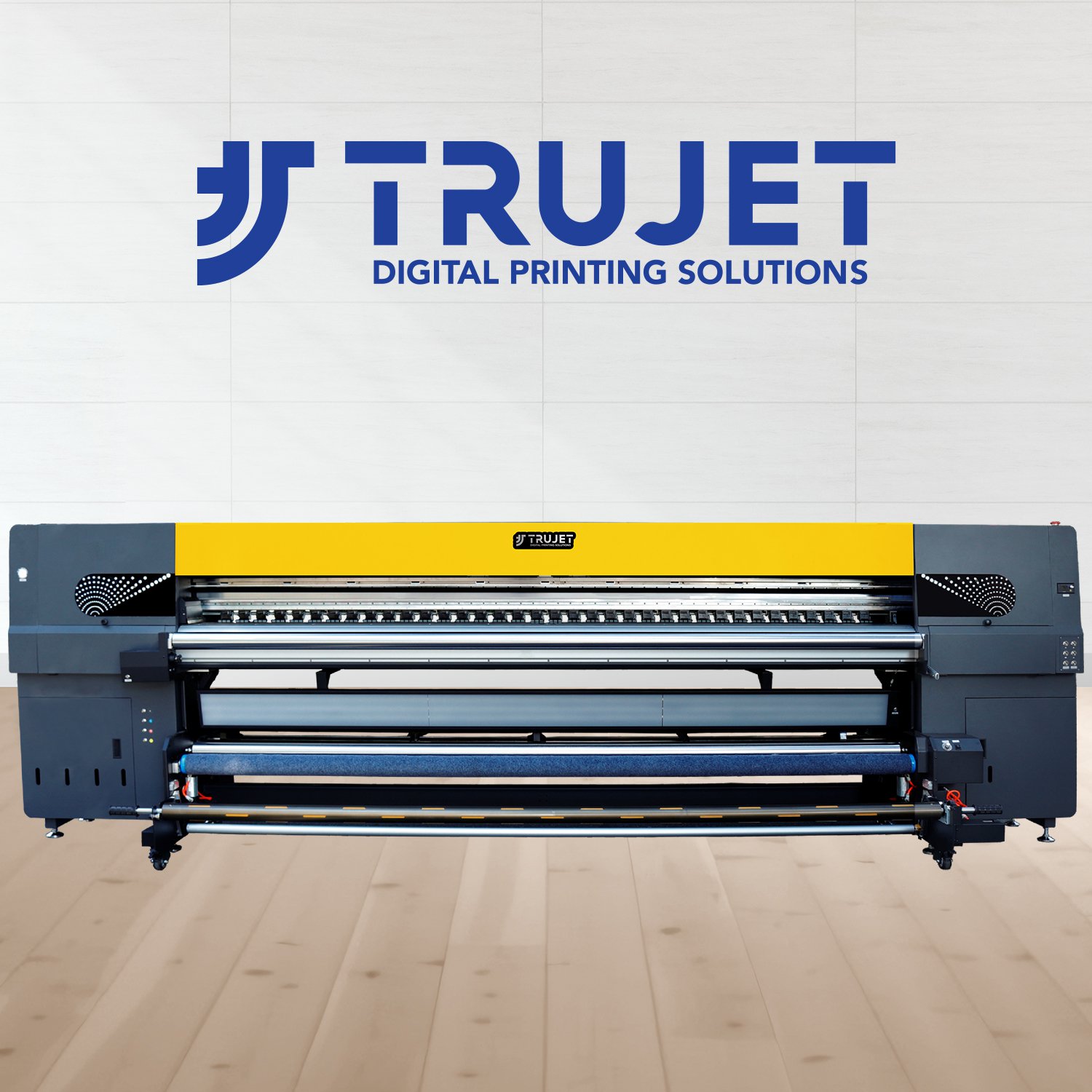

Trujet U8K
UV Printing Machines

Trujet U8K

Print Speed 60m²/hr Print Speed
Print Width 320cm Print Width

The Trujet U8K Roll to Roll UV Printing Machine offers a powerful solution for high-volume production with a print speed of 60 m²/hour and a maximum print width of 320 cm. Thanks to its three-stage (large, medium, small) pinch roller system, stable and smooth material feeding is ensured for materials of different thicknesses, while the high-precision aluminum platform supports superior print quality.

The Trujet U8K Roll to Roll UV Printing Machine offers a powerful solution for high-volume production with a print speed of 60 m²/hour and a maximum print width of 320 cm.


The high-frequency water-cooled LED UV lamp delivers fast and uniform curing performance, accelerating the production process. The anti-collision system on the carriage unit protects the print heads, while the integrated thermo-hygrometer allows real-time monitoring of ambient temperature and humidity values. The industrial-grade negative pressure system ensures stable ink flow, providing uninterrupted and reliable printing performance.


Trujet U8K Roll to Roll UV Printing Machine
Model U8K-32
Print Head Konica 1024i (6/13 pl) / 8 Units
Print Speed 6 PASS: 60 m²/hr (8 Heads)
Maximum Print Width 3200 mm
UV Curing System Infrared light + fan-assisted UV curing system
Operating Temperature / Humidity 20 – 26 °C / 40% – 70% RH
Power Machine Power: 1300 W + UV Chiller: 2300 W
RIP Software RIIN / Maintop / Photoprint / ONYX (Optional)
Supported Material Types All indoor and outdoor advertising materials
and decoration materials
Machine Dimensions 4805 x 980 x 1560 mm
Packing Dimensions 5120 x 1150 x 1650 mm
Net / Gross Weight 1100 kg / 1370 kg
