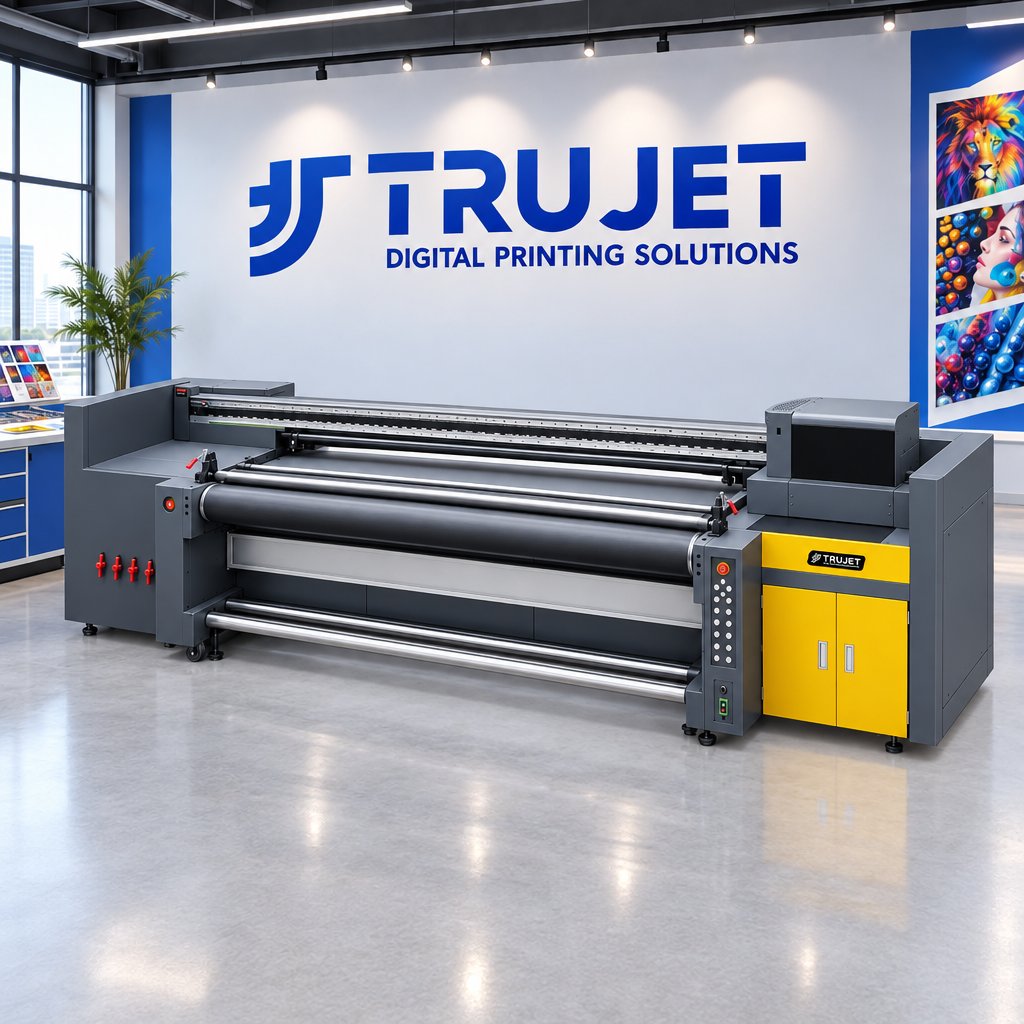

Trujet U8RH 32 / U12RH 32 UV Hybrid Printing Machine

High-quality printing results are achieved with a quiet dual guide rail system, an adjustable vacuum system across four independent zones, and high-frequency water-cooled LED UV lamps. The industrial-grade negative pressure system and carriage collision prevention system provide safe, continuous, and high-quality production on both roll-to-roll and rigid materials.

Trujet U8RH 32 / U12RH 32 UV Hybrid Printing Machine
Printhead Layout Options	FOUR ROWS W+CMYK	FOUR ROWS CMYK	FOUR ROWS CMYK+LC+LM	FOUR ROWS W+CMYK+LC+LM
Model	U8RH 32		U12RH 32
Number of Printheads	8 pcs		12 pcs
Print Mode	6 PASS: 32 m²/h 8 PASS: 24 m²/h	6 PASS: 48 m²/h 8 PASS: 38 m²/h	6 PASS: 45 m²/h 8 PASS: 36 m²/h	6 PASS: 30 m²/h 8 PASS: 23 m²/h
Printhead	Ricoh Gen6
Maximum Print Width	3.2 m (3200 mm)
UV Curing Lamp	Available (High-frequency water-cooled LED UV lamps)
Operating Temperature / Humidity	20 – 26 °C / 40% – 70% RH
Power	> 20A; 6.0 KW
RIP Software	Ergosoft / NeoStampa / Photoprint / ONYX (Optional)
Compatible Media Types	All types of indoor and outdoor advertising and decoration materials
Machine Dimensions	5850 x 1580 x 1700 mm (L x W x H)
Packaging Dimensions	5950 x 1680 x 1850 mm (L x W x H)
Net / Gross Weight	2980 kg / 3100 kg
