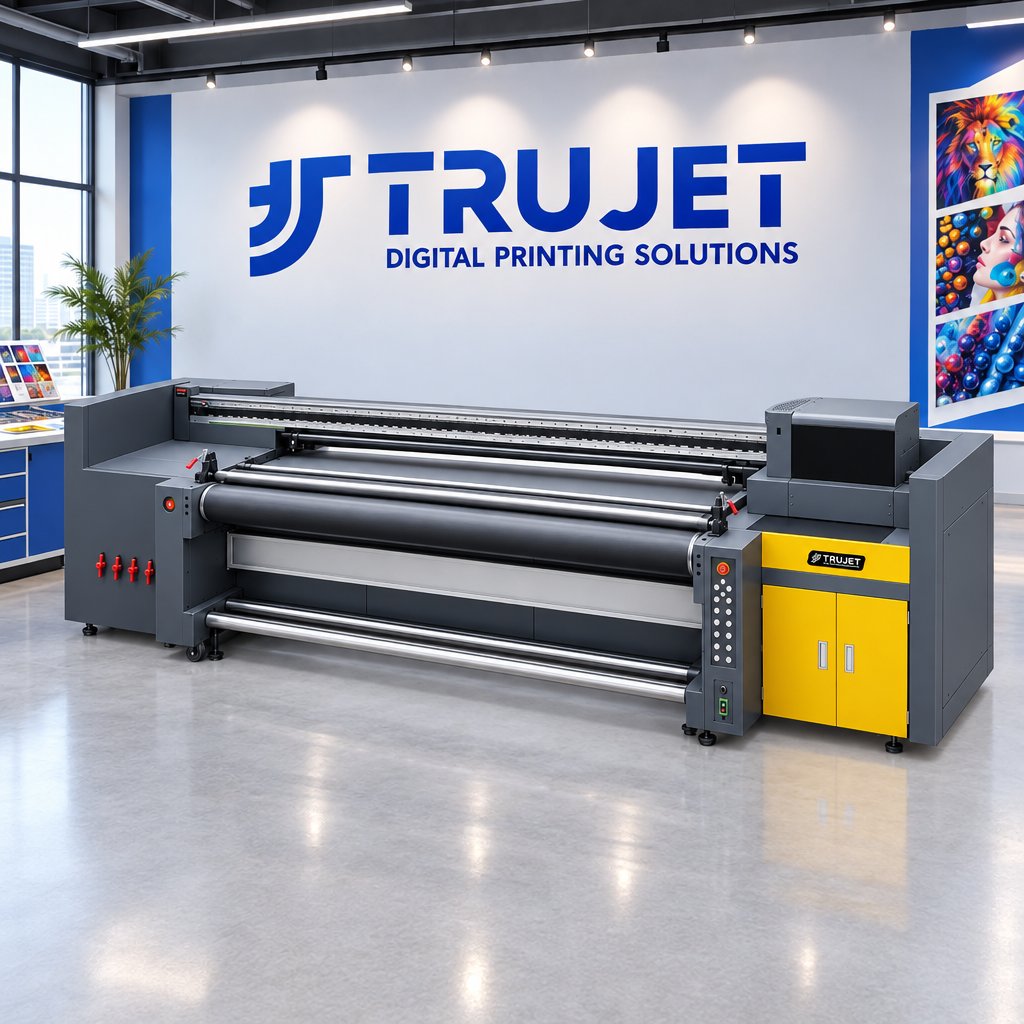

Trujet U9KH, U16KH, U24KH
UV Printing Machines

Trujet U9KH, U16KH, U24KH

Print Speed 100 m²/h Print Speed
Print Width 320 cm Print Width

Trujet U9KH 32 / U16KH 32 / U24KH 32 UV Hybrid Printing Machine delivers high speed, power, and precision for industrial production with Konica Minolta 1024i printheads, a maximum print speed of 100 m²/h, and a print width of 3.2 m.

DOWNLOAD CATALOG

Trujet U9KH / U16KH / U24KH UV Hybrid Printing Machine


It delivers excellent drying and print quality thanks to its high-quality quiet dual guide rail system, adjustable vacuum system across four independent zones, and high-frequency water-cooled LED UV lamps. With an industrial-grade negative pressure system, integrated thermohygrometer, and carriage collision prevention system, it provides a safe and uninterrupted working environment.


Trujet U9KH / U16KH / U24KH UV Hybrid Printing Machine
Printhead Layout Options
C+W+C Layout
C+W+C
W+C+C Layout
W+C+C
CMYK Layout
FOUR ROWS
CMYK
CMYK+LC+LM Layout
FOUR ROWS
CMYK+LC+LM
Model U9KH 32 U16KH 32 U24KH 32
Number of Printheads 9 pcs 16 pcs 24 pcs
Print Mode 6 PASS: 24 m²/h
8 PASS: 16 m²/h		 6 PASS: 48 m²/h
8 PASS: 32 m²/h		 6 PASS: 75 m²/h
8 PASS: 60 m²/h		 6 PASS: 100 m²/h
8 PASS: 80 m²/h
Printhead Konica 1024i (6/13pl) 4-25PCS
Maximum Print Width 3.2 m (3200 mm)
UV Curing Lamp Available (High-frequency water-cooled LED UV lamps)
Operating Temperature / Humidity 20 – 26 °C / 40% – 70% RH
Power > 20A; 6.0 KW
RIP Software Ergosoft / NeoStampa / Photoprint / ONYX (Optional)
Compatible Media Types All types of indoor and outdoor advertising and decoration materials
Machine Dimensions 5850 x 1580 x 1700 mm (L x W x H)
Packaging Dimensions 5950 x 1680 x 1850 mm (L x W x H)
Net / Gross Weight 2980 kg / 3100 kg
